Medium Aluminosilicate Touch Panel Cover Glass Chemical Resistant 0.25~2.0mm

Name: Medium Aluminosilicate Touch Panel Cover Glass Chemical Resistant 0.25~2.0mm
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-M1
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-M1
MOQ:	10000 square meters
Price:	Negotiable
Payment Terms:	,T/T,Western Union
Supply Ability:	Annual output 20 million square meters

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free

Name:

Medium Aluminosilicate Touch Panel Cover Glass Chemical Resistant 0.25~2.0mm

Application:

Consumer Electronics Cover, Vehicle Display, Industrial Touch Panels, Smart Home Screen Display, ITO Conductive Fields

Packaging Details:

Wooden Box/ Pallet

Supply Ability:

Annual output 20 million square meters

Highlight:

Touch Panel Cover Glass 2.0mm

Medium Aluminosilicate Touch Panel Glass

Chemical Resistant Aluminosilicate Cover Glass

Product Description

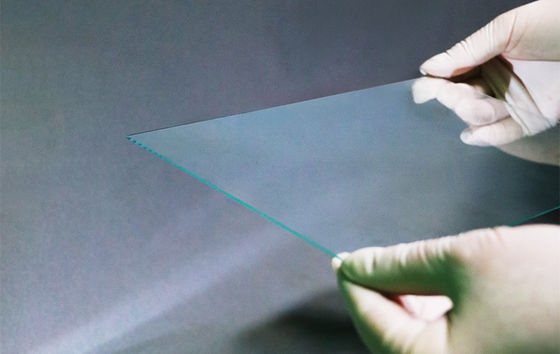

Chiyan Glass for Industrial Touch panels Front Cover Glass Tempered Glass

Green Medium Aluminosilicate Glass(CHIYAN-M1) is an environmental-friendly ultra-thin aluminosilicate glass with certain strength.

Features:

High Impact Resistance

High Scratch Resistance

High Transmittance

High chemical resistance

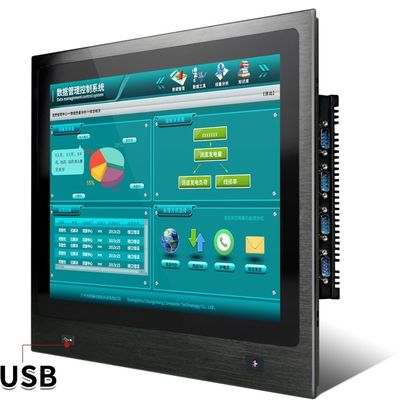

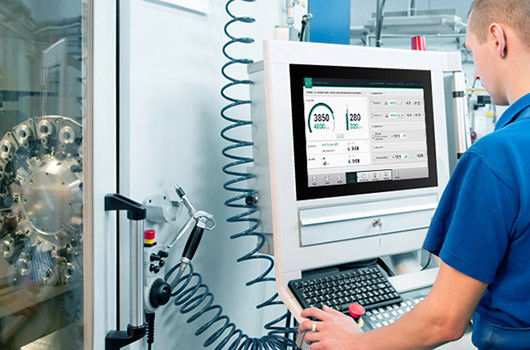

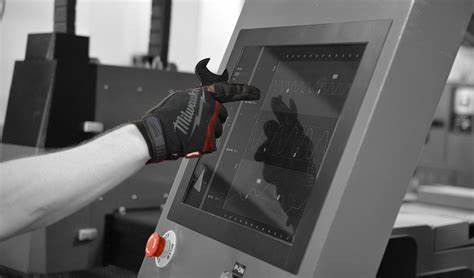

Application: Widely used in consumer electronics cover, vehicle display, industrial touch panels, smart home screen display, ITO conductive fields;

Regular Thickness:

2.0mm 1.80mm 1.50mm 1.30mm

1.10mm 0.70mm 0.55mm

0.40mm 0.33mm 0.25mm

CHIYAN-M1’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

Standard Size:1300*1100mm (5th Generation)

1092.2*1244.6mm

Note: The size can be customized according to customer's needs.

Product Composition

Medium Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Physical Property Parameter

S/N	Items	Unit	Test Standard	CY-M2
1	Density	g/cm3	GB/T5432-2008	2.48±0.01
2	Refractive Index	/	GB/T 2680-2021	1.51±0.01
3	Young's Modulus	Gpa	GB/T 37780-2019	73.0±0.5
4	Transmittance	%	GB/T 2680-2021	≥91
5	Volume Resistivity	lg(Ω .cm)	GB/T 31838.2-2019	6.8
6	Dielectric Constant	F/m	SJ/T 11043-1996	7.6
7	Softening Point	℃	GB/T 28195-2011	739±10
8	Strain Point	℃	GB/T 28196-2011	514±5
9	Annealing Point	℃	GB/T 28196-2011	555±5
10	Thermal Expansivity	* 10-7/℃	SJ/T 11036-1996	85±5
11	Photoelastic Coefficient	nm/cm/MPa	BS 7604-1-1992	27.0±0.2
12	Poisson's Coefficient	/	GB/T 28195-2011	0.23±0.02
13	Vickers-hardness	HV	GB/T 16534-2009	580±10

Chemical Tempering Process Parameter Setting Reference

Technological Parameter	400°C		410°C		420°C		430°C
Technological Parameter	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)
3H	≥650	≥7.0	≥650	≥8.0	≥650	≥9.0	≥650	≥10.5
4H	≥600	≥8.0	≥600	≥9.0	≥600	≥11.0	≥600	≥12.5
5H	≥600	≥9.0	≥600	≥10.0	≥600	≥11.5	≥600	≥13.0

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.


Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
