High Transmittance High Alumino Silicate Glass For Automotive Display Glass Cover

Name: High Transmittance High Alumino Silicate Glass For Automotive Display Glass Cover
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-H1
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-H1
MOQ:	10,000㎡
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	2 Million ㎡ per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHs/REACH/Sb/Halogen free

Density:

2.47

Refractive Index:

1.51

Young's Modulus:

75.6

Transmittance:

≥92

Volume Resistivity:

9.1

Dielectric Constant:

8.2

Softening Point:

830

Strain Point:

558

Annealing Point:

606

Thermal Conductivity:

Thermal Expansivity:

Photoelastic Coefficient:

27.2

Poisson's Coefficient:

0.23

Vickers-hardness:

700

Packaging Details:

Carton/Pallet

Supply Ability:

2 Million ㎡ per month

Highlight:

High Transmittance Alumino Silicate Glass

Automotive Display Alumino Silicate Glass

Automotive Display Cover Glass

Product Description

High Transmittance High Alumino-Silicate Glass for automotive display glass cover manufacturer

High Alumino-Silicate Glass (CHIYAN-H1) is an high aluminosilicate ultra-thin glass eco-friendly , which increases the Al₂O₃ contents in the ingredients to improve the ion exchange efficiency, so that it has excellent mechanical properties after chemical strengthening.

Features:

Ultra Clear White

High chemical resistance

High Flexibility

High Impact Resistance

High Scratch Resistance

High Transmittance

High Bending Strength Resistance

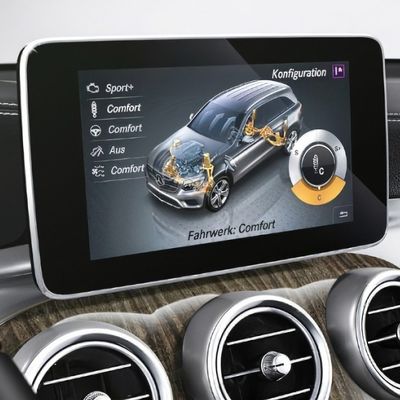

Application: Widely used in high-end smartphone, tablet pc, electronic devices screen protection, car-mounted display screen, industrial touch panels, smart home screen display fields etc.,

Conventional Thickness:

0.3mm~6mm

CHIYAN-H1’s 0.3~6.0mm thickness high alumino-silicate glass has already been used in the market to comply with a wide range of customers needs.

Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

Product Composition

High Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Chemical Tempering Process Parameter

CS	>900Mpa
DOL	>50um
4PB	>800Mpa

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Packaging Diagram


High Alumino-Silicate Glass(CHIYAN-H1) is adopted Float Glass Process.

Float glass is made by heating raw materials—silica sand, limestone, soda ash, and magnesium in a furnace. When melted, it’s then spread out over a sizable bed of molten tin. As it moves along rollers in the annealing oven during a controlled cooling process, this mixture slowly solidifies over the molten tin. From this point, a single, continuous smooth ribbon of glass emerges as below picture showed:


Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
