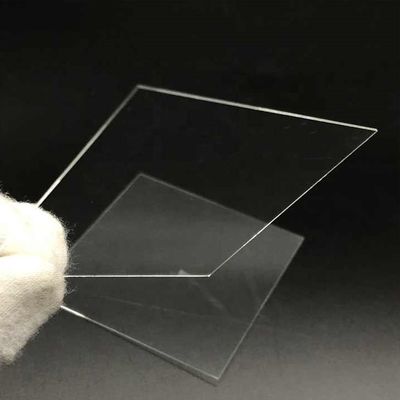

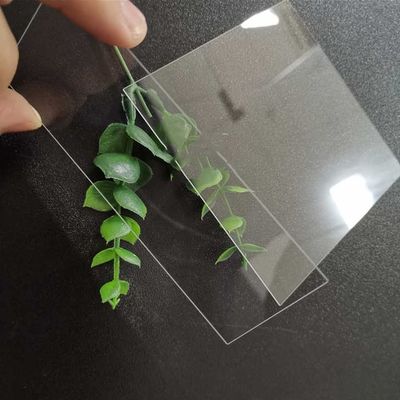

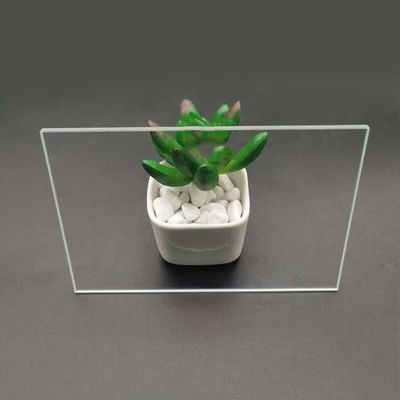

Aluminosilicate glass for low reflection and high transmittance optical imaging equipment AR coated glass

Name: Aluminosilicate glass for low reflection and high transmittance optical imaging equipment AR coated glass
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-M2
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-M2
MOQ:	10,000㎡
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	2 Million ㎡ per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHs/REACH/Sb/Halogen free

Density:

2.48±0.01

Refractive Index:

1.51±0.01

Young's Modulus:

73.0±0.5

Transmittance:

≥91.5

Volume Resistivity:

≥10.0

Dielectric Constant:

≥7.0

Softening Point:

750±10

Strain Point:

516±5

Annealing Point:

562±5

Thermal Conductivity:

0.682±0.10

Thermal Expansivity:

85±5

Photoelastic Coefficient:

27.0±0.2

Poisson's Coefficient:

0.23±0.02

Vickers-hardness:

610±10

Packaging Details:

Carton/Pallet

Supply Ability:

2 Million ㎡ per month

Highlight:

Low Reflection Aluminosilicate glass

High Transmittance Aluminosilicate glass

AR coated Aluminosilicate glass

Product Description

Aluminosilicate float glass for low reflection and high transmittance optical imaging equipment AR coated glass

Ultra Clear Medium Alumino-Silicate Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

Glass Type: Float glass

AR coated glass with low reflection and high transmittance

AR Glass combines top grade float glass with most advanced Magnetron sputtering coating technology,reduces effectively the reflection of the glass itself, increases the transmittance of the glass, and makes the original color through the glass more vivid and real.

Standard shipping Size:1300*1100mm (5th Generation)

Regular Thickness:

2.0mm 1.80mm 1.50mm 1.30mm

1.10mm 0.70mm 0.55mm

0.40mm 0.33mm 0.25mm

Features:

High Bending Strength Resistance

High Impact Resistance

High Scratch Resistance

High Flexibility

CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

Note: The size can be customized according to customer's needs.

Application:Widely used in vehicle, consumer electronics cover glass, photovoltaic, industrial touch, smart home field;

Product Composition

Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Composition items	SiO₂	Al₂O₃	Fe₂O₃	CaO	MgO	K₂O	Na₂O
Range of set value	69.0-72.0	4.5-8.0	＜0.01	6.0-8.0	3.5-5.0	0.1-1.0	13.0-14.5

Chemical Tempering Process Parameter Setting Reference

Technological Parameter	400°C		410°C		420°C		430°C
Technological Parameter	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)
3H	≥650	≥7.0	≥650	≥8.0	≥650	≥9.0	≥650	≥10.5
4H	≥600	≥8.0	≥600	≥9.0	≥600	≥11.0	≥600	≥12.5
5H	≥600	≥9.0	≥600	≥10.0	≥600	≥11.5	≥600	≥13.0

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Dimensions

NO.	Item	Specification	Detection Method
1	Dimensional Tolerance	13001100(±2mm)	Tape Measure
2	Thickness	0.50~1.1 ±0.05m 1.3~2.0 ±0.05m	Micrometer
3	Thickness Difference	≤0.04mm	Micrometer
4	The Diagonal Difference (Perpendicularity)	≤0.3%	Tape Measure
5	Stripe	≤Level2	Point Sources of Light
6	Flatness (Before Tempering)	0.50~0.55 ≤0.15%(=h/L) 0.70~2.0 ≤0.10%(=h/L)

Appearance descriptions

NO.	Item		Specification	Detection Method
1	Effective Mass Area		All areas outside 10mm of the edge are effective mass areas.
2	Appearance Defects	Scratches	w≤0.03mm, Allowed 0.03mm＜w≤0.05mm,L≤25mm (Controlled by point defects) w＞0.05mm, Not allowed	Fluorescent Lamp 2000-2500Lux
		Bubbles	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
		Inclusions such as stones and sticky tin	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
3	Edge Defects	Chipping	Single chipping L≤2.0mm,W≤1.0mm,D≤1/2 of the thickness (as the right picture showed). The cumulative length of chipping is less than 10% of the edge length of the glass plate.
4		Cracks and missing corners	Not allowed
5	Surface stains (glass shavings, attachments, point contamination)		No stains that cannot be removed by ordinary detergents are allowed.
			d≤0.05mm, Not counted 0.05mm＜d≤0.3mm, Numbers≤5 /m² d＞0.3mm,Not allowed	The same method as appearance detection.

Packing Quantity

S/N	LWT(mm)	Packing Quantity (Pieces/Box)
1	1300x1100x0.25	900
2	1300x1100x0.33	1020
3	1300x1100x0.40	900
4	1300x1100x0.50	750
5	1300x1100x0.55	680
6	1300x1100x0.70	550
7	1300x1100x0.82	490
8	1300x1100x0.95	420
9	1300x1100x1.0	410
10	1300x1100x1.1	370
11	1300x1100x1.3	310
12	1300x1100x1.5	280
13	1300x1100x1.6	250
14	1300x1100x1.8	230
15	1300x1100x2.0	200

Packaging Diagram


Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
