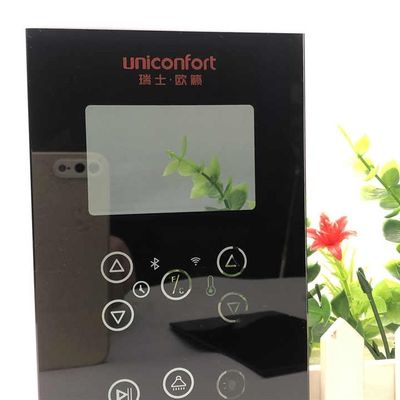

Lithium Aluminosilicate Tempered Glass For Home Electronic Panel Protective Cover

Lithium Aluminosilicate Raw Glass sheet for Home Electronic Appliance Tempered Panel Protective Cover Glass

Lithium Aluminosilicate electronic raw float glass sheet (CHIYAN-H2) is a newly developed lithium aluminum silicon ultra-thin flat glass for high-end touch displays using float process. Based on the optimized double ion exchange process based on a unique formula, high-pressure stress and deep pressure stress layers are achieved, making the product exhibit extremely strong resistance to falling, punching, scratching and bending strength.

Clear float glass is made of molten glass which flows through tweel to tin bath and then to lehr. While floating through the molten tin, the glass under the works of gravity and surface tension becomes smooth and flat at both sides.The clear float glass has higher light transmittance than ordianry glass.It's often used as tv protection glass,led monitor glass,touch screen glass etc.You also can select ultra clear glass as material, it is a kind of flat glass with highly clears, highly transmissive, highly smooth. It's also called low iron glass.And it is a new type of deeply processed glass, The glass is a lower iron float glass and be made by a special process. It is not like the clear float glass to sight like green, it looks just like colorless crystal, highly transmissive and terrific.

Features:

High Transmittance

High Flexibility

Excellent Bending Strength Resistance

Ultra-high Strengthening Stress can be Achieved

Strong Scratch Resistance

Regular Thickness:

0.3mm~6mm

Application: Widely used in high-end consumer electronics device cover, smartphone, Tablet pc, outdoor signage display etc.,

CHIYAN-H2’s 0.3~6.0mm thickness Lithium alumino silicate glass has already been used in the market to comply with a wide range of customers needs.

Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

Product Composition

Lithium Alumino Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Chemical Tempering Process Parameter

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Packaging Diagram

Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.

Payment Terms: 30% deposit. 70% balance before shipping

lithium Alumino-Silicate Glass(CHIYAN-H2) is adopted Float Glass Process.

Float glass is made by heating raw materials—silica sand, limestone, soda ash, and magnesium in a furnace. When melted, it’s then spread out over a sizable bed of molten tin. As it moves along rollers in the annealing oven during a controlled cooling process, this mixture slowly solidifies over the molten tin. From this point, a single, continuous smooth ribbon of glass emerges as below picture showed:
