High Transmittance Aluminosilicate Solar Photovoltaic Glass Low Iron Ultra White

High Transmittance Aluminosilicate raw glass sheet for Low Iron Ultra White Solar Photovoltaic Glass

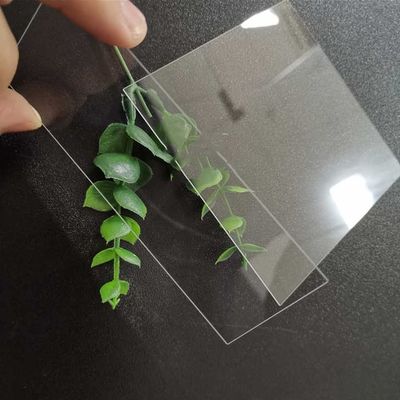

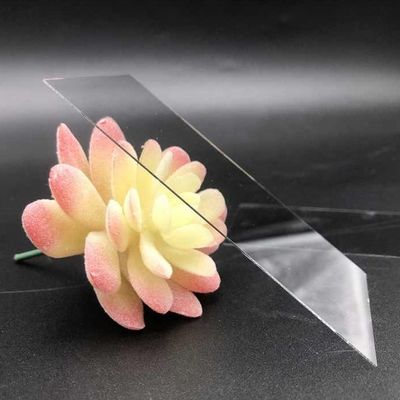

Ultra Clear Medium Aluminosilicate Electronic Float Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

Glass Type: Float glass

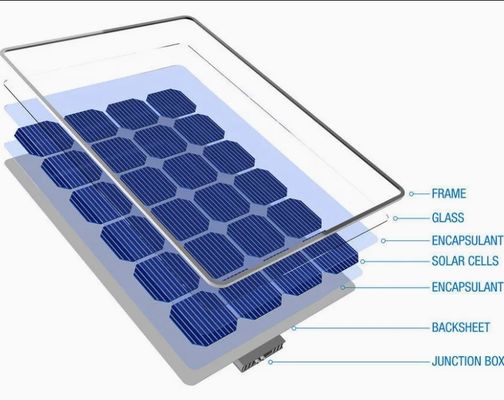

Photovoltaic glass is widely used in solar power stations, rooftop photovoltaic systems, photovoltaic curtain walls and other fields. It can convert solar energy into electricity, provide power for various equipment, and has the characteristics of environmental protection and sustainable.

Standard shipping Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

Regular Thickness:

2.0mm 1.80mm 1.50mm 1.30mm

1.10mm 0.70mm 0.55mm

0.40mm 0.33mm 0.25mm

Features:

High Bending Strength Resistance

High Impact Resistance

High Scratch Resistance

High Flexibility

CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

Application:Industrial, Electronics, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument

Courtyard, Leisure Facilities, supermarket, Farmhouse, Laundry, Workshop, Exterior, Warehouse, Staircase, outdoor, Park, Wine Cellar, Office Building, Storage & Closet, Gym, Mall, Apartment, Sports Venues, Hospital, Hotel, Home Bar, Hall, Garage & Shed

Product Composition

Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Chemical Tempering Process Parameter Setting Reference

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Dimensions

NO.	Item	Specification	Detection Method
1	Dimensional Tolerance	1300*1100*(±2mm)	Tape Measure
2	Thickness	0.50~1.1 ±0.05m 1.3~2.0 ±0.05m	Micrometer
3	Thickness Difference	≤0.04mm	Micrometer
4	The Diagonal Difference (Perpendicularity)	≤0.3%	Tape Measure
5	Stripe	≤Level2	Point Sources of Light
6	Flatness (Before Tempering)	0.50~0.55 ≤0.15%(=h/L) 0.70~2.0 ≤0.10%(=h/L)

Appearance descriptions

NO.	Item		Specification	Detection Method
1	Effective Mass Area		All areas outside 10mm of the edge are effective mass areas.
2	Appearance Defects	Scratches	w≤0.03mm, Allowed 0.03mm＜w≤0.05mm,L≤25mm (Controlled by point defects) w＞0.05mm, Not allowed	Fluorescent Lamp 2000-2500Lux
		Bubbles	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
		Inclusions such as stones and sticky tin	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
3	Edge Defects	Chipping	Single chipping L≤2.0mm,W≤1.0mm,D≤1/2 of the thickness (as the right picture showed). The cumulative length of chipping is less than 10% of the edge length of the glass plate.
4		Cracks and missing corners	Not allowed
5	Surface stains (glass shavings, attachments, point contamination)		No stains that cannot be removed by ordinary detergents are allowed.
			d≤0.05mm, Not counted 0.05mm＜d≤0.3mm, Numbers≤5 /m² d＞0.3mm,Not allowed	The same method as appearance detection.

Packing Quantity

Packaging Diagram

Storage
Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
