CHIYAN ITO Conductive Glass Green Medium Alumino Silicate Glass

Name: CHIYAN ITO Conductive Glass Green Medium Alumino Silicate Glass
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-M1
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-M1
MOQ:	10000 square meters
Price:	Negotiable
Payment Terms:	,T/T,Western Union
Supply Ability:	Annual output 20 million square meters

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free

Name:

CHIYAN Green Medium Alumino Silicate Glass For ITO Conductive Glass

Thickness:

0.33mm~6mm

Color:

Green

Size:

1100*1300mm,1092.2mm*1244.6mm

Pencil Hardness:

>9H

CS:

600~750Mpa

DOL:

9-12um

Transmittance(0.7mmt,550nm)):

＞91％

Packaging Details:

Wooden Box/ Pallet

Supply Ability:

Annual output 20 million square meters

Highlight:

Green ITO Conductive Glass

Green Medium Alumino Silicate Glass

Medium Alumino Silicate ITO Conductive Glass

Product Description

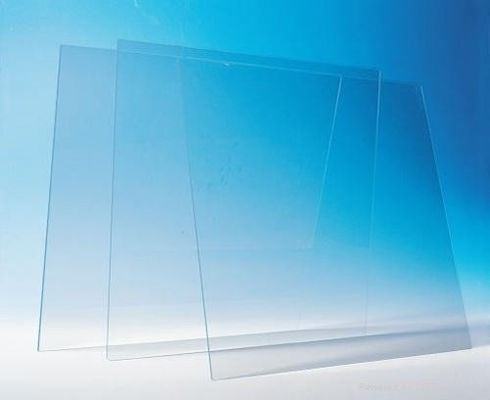

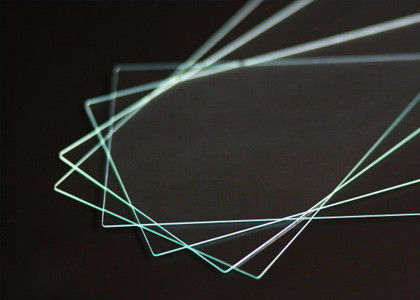

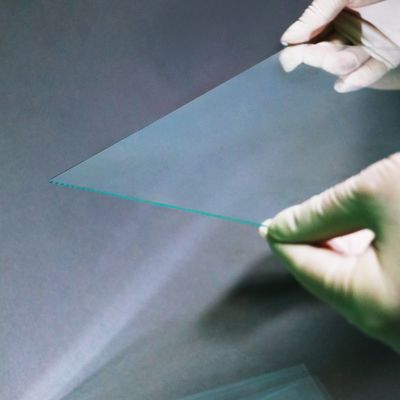

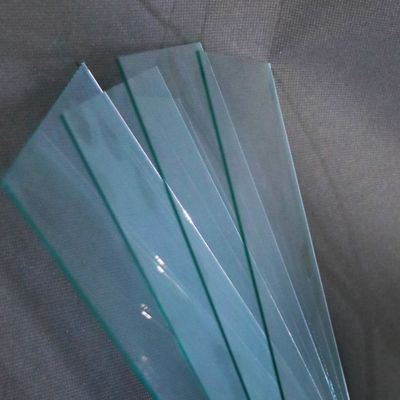

CHIYAN Green Medium Alumino Silicate Glass for ITO Conductive Glass

Green Medium Aluminosilicate Glass(CHIYAN-M1) is CHIYAN-M1 is our company's first Chinalco green glass product. It is suitable for protective glass of high-end display devices (vehicles, smartphones, tablets, laptops, etc.) as well as display glass for MINI LED, ITO, smart windows, etc.

Features:

Scratch resistance
Impact resistance
High transmission
High chemical resistance

Application: Widely used in protective glass of high-end display devices (vehicles, smartphones, tablets, laptops, etc.) as well as display glass for MINI LED, ITO, smart windows, etc.

Regular Thickness:

2.0mm 1.80mm 1.50mm 1.30mm

1.10mm 0.70mm 0.55mm

0.40mm 0.33mm

Standard Size:1300*1100mm (5th Generation)

1092.2*1244.6mm

Note: The size can be customized according to customer's needs.

Product Composition

Medium Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Physical Property Parameter

S/N	Items	Unit	Test Standard	CHIYAN-M1
1	Density	g/cm3	GB/T5432-2008	2.48±0.01
2	Refractive Index	/	GB/T 2680-2021	1.51±0.01
3	Young's Modulus	Gpa	GB/T 37780-2019	73.0±0.5
4	Transmittance	%	GB/T 2680-2021	≥91
5	Volume Resistivity	lg(Ω .cm)	GB/T 31838.2-2019	6.8
6	Dielectric Constant	F/m	SJ/T 11043-1996	7.6
7	Softening Point	℃	GB/T 28195-2011	739±10
8	Strain Point	℃	GB/T 28196-2011	514±5
9	Annealing Point	℃	GB/T 28196-2011	555±5
10	Thermal Expansivity	* 10-7/℃	SJ/T 11036-1996	85±5
11	Photoelastic Coefficient	nm/cm/MPa	BS 7604-1-1992	27.0±0.2
12	Poisson's Coefficient	/	GB/T 28195-2011	0.23±0.02
13	Vickers-hardness	HV	GB/T 16534-2009	580±10

Chemical Tempering Process Parameter Setting Reference

Technological Parameter	400°C		410°C		420°C		430°C
Technological Parameter	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)
3H	≥650	≥7.0	≥650	≥8.0	≥650	≥9.0	≥650	≥10.5
4H	≥600	≥8.0	≥600	≥9.0	≥600	≥11.0	≥600	≥12.5
5H	≥600	≥9.0	≥600	≥10.0	≥600	≥11.5	≥600	≥13.0

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

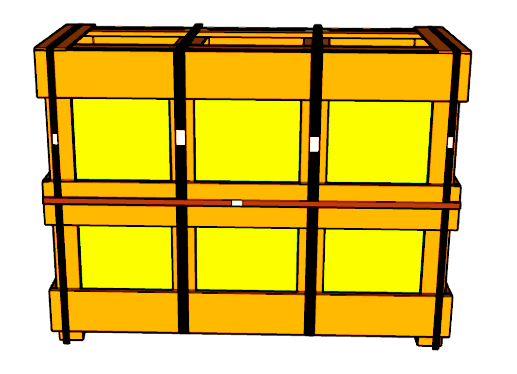

Packaging Diagram


Storage Conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
