Ultra Thin Alminosilicate Insulating Glass Units for Thin Triple Panel

Name: Ultra Thin Alminosilicate Insulating Glass Units for Thin Triple Panel
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-M2
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-M2
MOQ:	10000 square meters
Price:	Negotiable
Payment Terms:	,T/T,Western Union
Supply Ability:	Annual output 20 million square meters

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free

Name:

Ultra Thin Alminosilicate Glass Applied To Thin Triple-pane Insulated Glass Units

Color:

Ultra White

CS:

600~750MPa

DOL:

9~12um

4PB:

≥500MPa

Can Be Processed:

Yes

Transmittance (0.7mmt,550nm):

91.5%

Size Available:

1100*1300mm

Customized Size:

Yes

Pencil Hardness:

＞9H

Packaging Details:

Wooden Box/ Pallet

Supply Ability:

Annual output 20 million square meters

Highlight:

Alminosilicate Insulating Glass Units

Ultra Thin Insulating Glass Units

Thin Triple Panel Alminosilicate Glass

Product Description

Ultra Thin Alminosilicate Glass Applied To Thin Triple-pane Insulated Glass Units

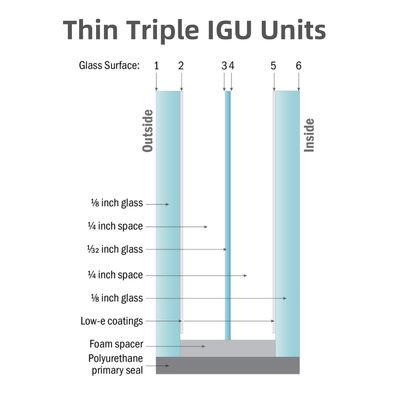

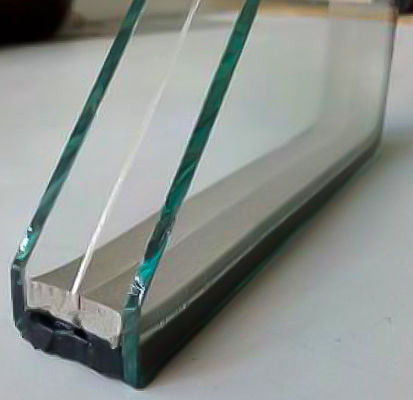

Thin triple-pane insulated glass units deliver high-performance glass in a thinner, more efficient manner.

These units have a much better U-value than traditional double glazing, while also solving thickness and weight issues.

Thin triple-glazed insulating glass is particularly suitable for new build and refurbishment residential applications. For new construction, its reduced weight simplifies transportation and installation.

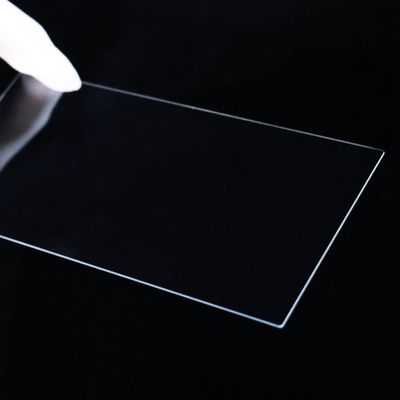

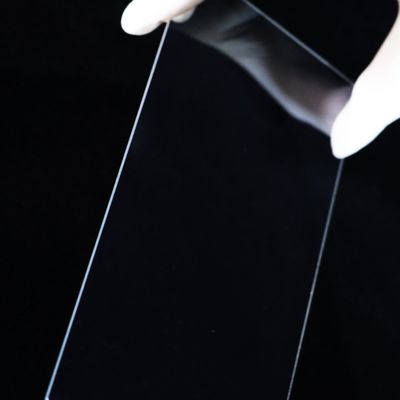

Our CHIYAN-M2 Ultra-Clear Ultra Thin Medium Alumino-Silicate Glass is eco-friendlly alumino-silicate glass with light weight geting more and more popular in the market to improve building energy efficiency.

Features:

High Impact Resistance
High Scratch Resistance
Ultra High Transmittance
Small Warpage

Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

Product Composition

Ultra Clear Medium Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

Composition items	SiO₂	Al₂O₃	Fe₂O₃	CaO	MgO	K₂O	Na₂O
Range of set value	69.0-72.0	4.5-8.0	＜0.01	6.0-8.0	3.5-5.0	0.1-1.0	13.0-14.5

Physical Property Parameter

S/N	Items	Unit	Test Standard	CY-M2
1	Density	g/cm3	GB/T5432-2008	2.48±0.01
2	Refractive Index	/	GB/T 2680-2021	1.51±0.01
3	Young's Modulus	Gpa	GB/T 37780-2019	73.0±0.5
4	Transmittance	%	GB/T 2680-2021	≥91.5
5	Volume Resistivity	lg(Ω .cm)	GB/T 31838.2-2019	≥10.0
6	Dielectric Constant	/	SJ/T 11043-1996	≥7.0
7	Softening Point	℃	GB/T 28195-2011	750±10
8	Strain Point	℃	GB/T 28196-2011	516±5
9	Annealing Point	℃	GB/T 28196-2011	562±5
10	Thermal Conductivity	W/( m.K)	JC/T 675-1997	0.682±0.10
11	Thermal Expansivity	* 10-7/℃	SJ/T 11036-1996	85±5
12	Photoelastic Coefficient	nm/cm/MPa	BS 7604-1-1992	27.0±0.2
13	Poisson's Coefficient	/	GB/T 28195-2011	0.23±0.02
14	Vickers-hardness	HV	GB/T 16534-2009	610±10

Chemical Tempering Process Parameter Setting Reference

Technological Parameter	400°C		410°C		420°C		430°C
Technological Parameter	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)	CS(MPa)	DOL(um)
3H	≥650	≥7.0	≥650	≥8.0	≥650	≥9.0	≥650	≥10.5
4H	≥600	≥8.0	≥600	≥9.0	≥600	≥11.0	≥600	≥12.5
5H	≥600	≥9.0	≥600	≥10.0	≥600	≥11.5	≥600	≥13.0

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

Dimensions

NO.	Item	Specification	Detection Method
1	Dimensional Tolerance	13001100(±2mm)	Tape Measure
2	Thickness	0.50~1.1 ±0.05m 1.3~2.0 ±0.05m	Micrometer
3	Thickness Difference	≤0.04mm	Micrometer
4	The Diagonal Difference (Perpendicularity)	≤0.3%	Tape Measure
5	Stripe	≤Level2	Point Sources of Light
6	Flatness (Before Tempering)	0.50~0.55 ≤0.15%(=h/L) 0.70~2.0 ≤0.10%(=h/L)

Packing Quantity

S/N	LWT(mm)	Packing Quantity (Pieces/Box)
1	1300x1100x0.25	900
2	1300x1100x0.33	1020
3	1300x1100x0.40	900
4	1300x1100x0.50	750
5	1300x1100x0.55	680
6	1300x1100x0.70	550
7	1300x1100x0.82	490
8	1300x1100x0.95	420
9	1300x1100x1.0	410
10	1300x1100x1.1	370
11	1300x1100x1.3	310
12	1300x1100x1.5	280
13	1300x1100x1.6	250
14	1300x1100x1.8	230
15	1300x1100x2.0	200

Packaging Diagram


Storage conditions:

Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
