2.5D Rounded Edge Screen Protector Glass, Full Coverage & Scratch Resistant for Mobile Screens

CHIYAN-M2 Ultra Clear Medium Alumino-Silicate Glass is an environmental-friendly ultra-thin alumino-silicate glass can be used in Electronic Display Cover Glass, can be used for a glass material for tempered as protective glass and suitable for all brands cellphones.

• Selling Points:

1. High Impact Resistance

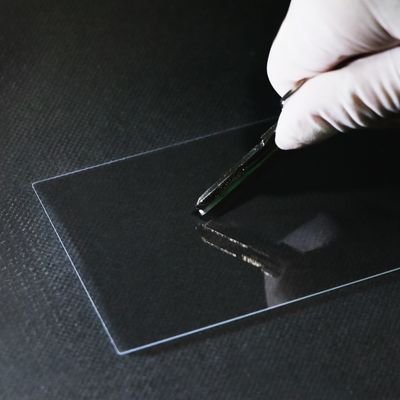

2. High Scratch Resistance

3. Super Flexibility

4. Bending Strength Resistance





• Regular Thickness:

0.25mm, 0.33mm, 0.4mm,0.5mm, 0.55mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.1mm,1.3mm, 1.5mm, 1.8mm, 2.0mm

• Application: CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs. Widely used in vehicle, consumer electronics cover plate, photovoltaic, industrial touch, smart home field;

• Standard Size:1300*1100mm (5th Generation)

Note: The size can be customized according to customer's needs.

• Product Composition

Ultra Clear Medium Alumino-Silicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

• Physical Property Parameter

• Chemical Tempering Process Parameter Setting Reference

Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

• Dimensions

NO.	Item	Specification	Detection Method
1	Dimensional Tolerance	1300*1100*(±2mm)	Tape Measure
2	Thickness	0.50~1.1 ±0.05m 1.3~2.0 ±0.05m	Micrometer
3	Thickness Difference	≤0.04mm	Micrometer
4	The Diagonal Difference (Perpendicularity)	≤0.3%	Tape Measure
5	Stripe	≤Level2	Point Sources of Light
6	Flatness (Before Tempering)	0.50~0.55 ≤0.15%(=h/L) 0.70~2.0 ≤0.10%(=h/L)

• Appearance Specifications

NO.	Item		Specification	Detection Method
1	Effective Mass Area		All areas outside 10mm of the edge are effective mass areas.
2	Appearance Defects	Scratches	w≤0.03mm, Allowed 0.03mm＜w≤0.05mm,L≤25mm (Controlled by point defects) w＞0.05mm, Not allowed	Fluorescent Lamp 2000-2500Lux
		Bubbles	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
		Inclusions such as stones and sticky tin	d≤0.05mm, Not counted 0.05mm＜d≤0.2mm, Numbers≤5 /m² d＞0.2mm,Not allowed
3	Edge Defects	Chipping	Single chipping L≤2.0mm,W≤1.0mm,D≤1/2 of the thickness (as the right picture showed). The cumulative length of chipping is less than 10% of the edge length of the glass plate.
4		Cracks and missing corners	Not allowed
5	Surface stains (glass shavings, attachments, point contamination)		No stains that cannot be removed by ordinary detergents are allowed.
			d≤0.05mm, Not counted 0.05mm＜d≤0.3mm, Numbers≤5 /m² d＞0.3mm,Not allowed	The same method as appearance detection.

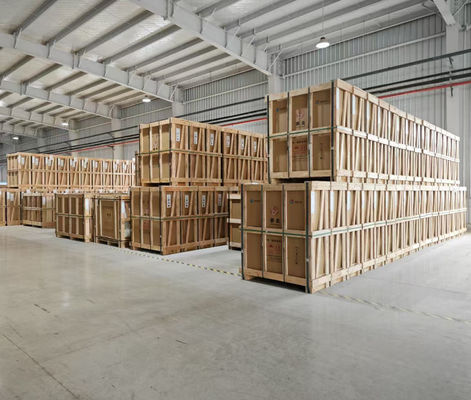

• Packing Quantity

• Packaging Diagram

• Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
