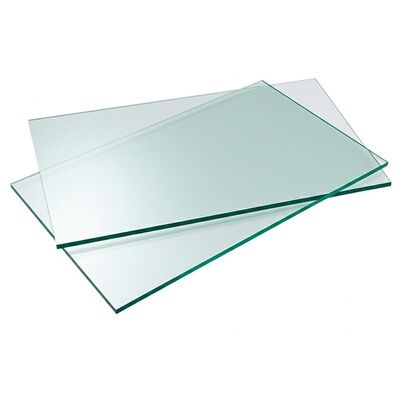

Soda Lime Glass Sheet (Float Glass) – Ultra-Clear Industrial Panel Glass

Our soda lime float glass sheets are made from an ultra-clear, low-iron soda-lime silicate formula (approximately 70% SiO₂, 14% Na₂O, 7% CaO, 6% Al₂O₃).

• Produced by the float process, they yield exceptionally flat, transparent panels with extremely high optical clarity.
• This glass offers excellent visible light transmittance (typically ≥91%) and robust surface hardness (>9H pencil hardness),
• making it ideal for protective cover glass on industrial displays, touchscreens, and other panel applications.
• Standard sheet sizes are around 1300×1100 mm with thicknesses from 0.25 mm up to 2.0 mm (larger or thicker sheets available on request).
• Glass can be cut, chamfered, polished, or drilled per customer requirements.
• For higher-strength requirements, the glass can be thermally tempered or chemically strengthened (ion-exchange),
• achieving surface compressive stresses up to 600–650 MPa for greatly improved impact and scratch resistance.
• Its combination of high transparency, strong durability, and the cost advantages of large-area float production
• make soda lime glass a highly cost-effective transparent panel solution for industrial projects worldwide.

Key Features

• Ultra-high transparency: Visible light transmittance typically ≥91%, ideal for high-clarity display protection and optical panels.
• Exceptional flatness and clarity: Float manufacturing ensures a perfectly smooth surface with minimal distortion.
• Multiple thickness options: Common thicknesses include 0.33, 0.40, 0.55, 0.70, 0.85, 0.90, 1.00, 1.10, 1.80, 2.00 mm.
• Durable composition: Provides ≥9H hardness and excellent chemical stability.
• Customizable strengthening: Available in heat-tempered or chemically toughened versions (600+ MPa surface stress).
• Cost-effective float production: Large-area float process offers high quality and low cost.
• Fully customizable processing: CNC cutting, polishing, coating, and more available.

Main Applications

• Industrial Displays: Protective glass for monitors, touch panels, control screens.
• Automotive Electronics: Dashboards, infotainment systems, center displays.
• Industrial Equipment Windows: Machine windows, inspection panels, interfaces.
• Solar & Lighting: Cover glass for solar modules and LED fixtures.

Technical Specifications

Packaging & Shipping

• Secure Crating: Reinforced wooden crates and pallets.
• Multi-layer Protection: Separated by kraft paper and interleaving sheets.
• Stable Securing: Band-strapped to prevent movement.
• Export-Ready: Complies with international shipping standards.
• Custom Options: Fumigation, moisture-proofing available.

FAQ

Q: What sizes can you provide?
A: From a few millimeters up to 3600×2400 mm. Tolerances within ±0.05–0.10 mm.

Q: Can the glass be tempered or strengthened?
A: Yes. Heat or chemical strengthening (600–650 MPa).

Q: What is the transmittance?
A: Typically ≥91.5%, nearly colorless.

Q: How is it packaged?
A: Protected with paper layers, crated securely for export.

Q: Do you support custom machining?
A: Yes. CNC cutting, drilling, polishing, coating, etc.

Q: What industries use this glass?
A: Industrial display, automotive electronics, PV/lighting, equipment windows.
