Flexible Display Folding UTG Glass Thickness 0.03mm 0.05mm 0.07mm 0.1mm

Name: Flexible Display Folding UTG Glass Thickness 0.03mm 0.05mm 0.07mm 0.1mm
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-U1
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-U1
MOQ:	10000 square meters
Price:	Negotiable
Payment Terms:	,T/T,Western Union
Supply Ability:	Annual output 20 million square meters

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free

Name:

Flexible Glass Thickness 0.03mm 0.05mm 0.07mm0.1mm Display Glass UTG Folding Glass

Color:

Super Transparent

Size:

400*500mm

Thickness Available:

0.03mm, 0.05mm, 0.07mm, 0.1mm, 0.15mm

Dynamic Bending Radius:

≥1.5mm

Bending Times:

≥300,000

Pencil Hardness:

＞9H

Foldable:

Yes

Packaging Details:

Wooden Box/ Pallet

Supply Ability:

Annual output 20 million square meters

Highlight:

Ultra Thin Flexible Glass

UTG Glass 0.1mm

Folding UTG Glass

Product Description

Flexible Glass Thickness 0.03mm 0.05mm 0.07mm0.1mm Display Glass UTG Folding Glass

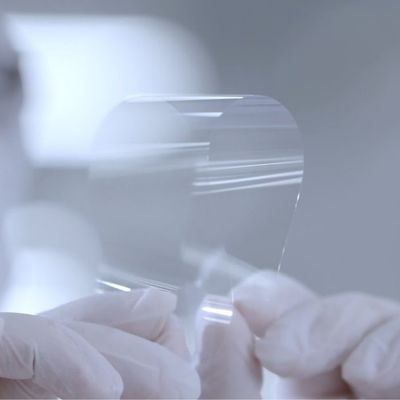

CHIYAN-U1 is an ultra-thin flexible glass product exclusively developed by CHIYAN and manufactured using a one-step drawing and forming process. It has water and oxygen resistance, excellent scratch resistance, high strength,etc.

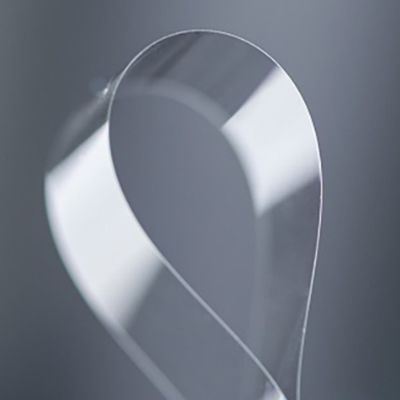

Foldable screens adopts ultra-thin glass that can be folded hundreds of thousands of times without breaking.

Ultra-thin glass is also clearer, more scratch-resistant, and can take more pressure than plastic.

Features:

Excellent optical properties
Wonderful bending performance
Super high scratch resistance

CHIYAN-U1's 0.03mm t~0.15mm ultra thin flexible glass has already been used in the market to meet a wide range of customers needs.

Application:

It can be used in Folding Mobile Phones, Portable Devices, and Wearable Devices and Display, Vehicle Display, Hight-tech Equipment and other fields.

Regular Thickness:

0.03mm,0.05mm,0.07mm,0.1mm, 0.15mm

Standard Size:400*500mm

Note: The size can be customized according to customer's needs.

Physical Property Parameter

S/N	Items	Unit	CY-U1
1	Density	g/cm3	2.46
2	Refractive Index(590nm)	/	1.50
3	Young's Modulus	Gpa	70
4	Poisson's Coefficient	/	0.20
5	Volume Resistivity	lg(Ω .cm)	7.1
6	Dielectric Constant	F/m	7.7
7	Softening Point	℃	833
8	Strain Point	℃	550
9	Annealing Point	℃	606
10	Transmittance(0.7mmt,550nm)	%	≥91
11	Thermal Expansivity	* 10-7/℃	99
12	Vickers-hardness(After strengthening)	Kgf/mm²	590

Bending Performance

Dynamic Bending Radius	≥1.5
Number of Bending	≥300,000

Packaging Diagram


Storage Conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
