Flexible Ultra Thin Glass Bendable UTG Glass Thickness 0.03mm 0.05mm 0.07mm

Name: Flexible Ultra Thin Glass Bendable UTG Glass Thickness 0.03mm 0.05mm 0.07mm
Brand: Hunan Xinghuai New Materials Technology Co., Ltd.
SKU: CHIYAN-U1
Availability: InStock

Brand Name:	CHIYAN
Model Number:	CHIYAN-U1
MOQ:	10000 square meters
Price:	Negotiable
Payment Terms:	,T/T,Western Union
Supply Ability:	Annual output 20 million square meters

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO14001/ISO9001/ RHOS/ REACH/ CP65/ Holagon Free

Name:

Flexible Glass Thickness 0.03mm 0.05mm 0.07mm0.1mm Display Glass UTG Folding Glass

Color:

Super Transparent

Size:

400*500mm

Thickness Available:

0.03mm, 0.05mm, 0.07mm, 0.1mm, 0.15mm

Dynamic Bending Radius:

≥1.5mm

Bending Times:

≥300,000

Pencil Hardness:

＞9H

Foldable:

Yes

Packaging Details:

Wooden Box/ Pallet

Supply Ability:

Annual output 20 million square meters

Highlight:

Flexible Ultra Thin Glass

Ultra Thin Glass 0.07mm

Bendable UTG Glass

Product Description

Thickness 0.03mm 0.05mm 0.07mm Of Ultra Thin Fexible Glass UTG Bendable Glass

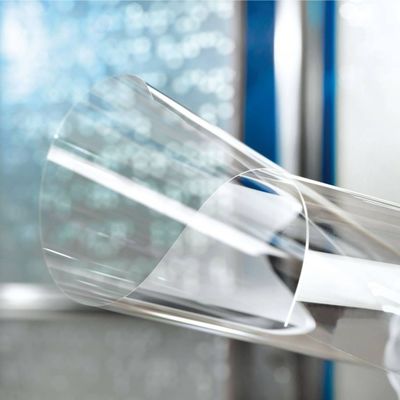

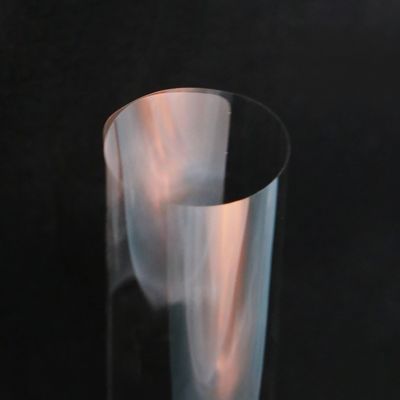

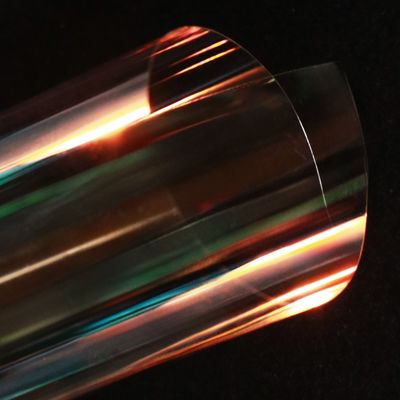

CHIYAN-U1 is an ultra-thin flexible glass product exclusively developed by CHIYAN and manufactured using a one-step drawing and forming process. It has water and oxygen resistance, excellent scratch resistance, high strength,etc.

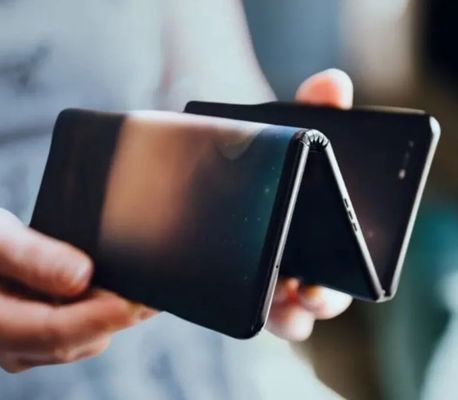

Foldable screens adopts ultra-thin glass that can be folded hundreds of thousands of times without breaking. This glass has thickness of just 30 µm. Its thin profile makes the glass so flexible that it can be rolled up like a film.

Ultra-thin glass is also clearer, more scratch-resistant, and can take more pressure than plastic.

Features:

Excellent optical properties
Wonderful bending performance
Super high scratch resistance

CHIYAN-U1's 0.03mm t~0.15mm ultra thin flexible glass has already been used in the market to meet a wide range of customers needs.

Application:

It can be used as flexible display in Folding Mobile Phones, Portable Devices, and Wearable Devices and Display, Vehicle Display, Hight-tech Equipment and other fields.

Regular Thickness:

0.03mm,0.05mm,0.07mm,0.1mm, 0.15mm

Standard Size:400*500mm

Note: The size can be customized according to customer's needs.

Physical Property Parameter

S/N	Items	Unit	CY-U1
1	Density	g/cm3	2.46
2	Refractive Index(590nm)	/	1.50
3	Young's Modulus	Gpa	70
4	Poisson's Coefficient	/	0.20
5	Volume Resistivity	lg(Ω .cm)	7.1
6	Dielectric Constant	F/m	7.7
7	Softening Point	℃	833
8	Strain Point	℃	550
9	Annealing Point	℃	606
10	Transmittance(0.7mmt,550nm)	%	≥91
11	Thermal Expansivity	* 10-7/℃	99
12	Vickers-hardness(After strengthening)	Kgf/mm²	590

Bending Performance

Dynamic Bending Radius	≥1.5
Number of Bending	≥300,000

Packaging Diagram


Storage Conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
